Dental Autoclave B class Model : Tanzo Classic Pre Vacuum 18L / 23L (Woson – Brazil)

Class B Pre-Vacuum Autoclave – TANZO CLASSIC 18L and 23L

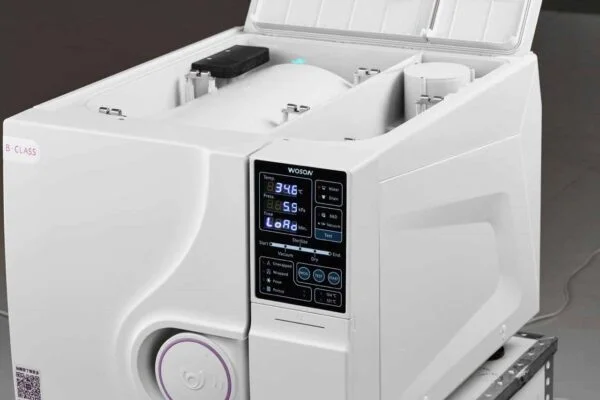

• Vertical reading front panel with selection of pre-programmed functions, temperature, pressure, time, phases of the complete cycle, water level in the water tanks.
• Illuminated LED function indicators make them easy to read and simple to operate.
• Front door and side opening, where you will find a USB connection and a slot for a mini printer.
• Recording of complete cycle data every 30” on a USB flash drive and/or on tapes via thermal printer. The thermal printer is optional.
• 304 stainless steel door of the stainless steel chamber, with mirror finish, equipped with a two-stage lock and silicone gasket for high temperatures.
• 304 AISI stainless steel chamber (medical steel) without seams, without welds, easy to clean and sanitize.
• Leveling feet on horizontal benches for installation in ideal operating conditions.
• Recommended for autoclaving packaged, cannulated, articulated, porous materials, diamond tips, textiles, rubber fields, handpieces and similar.
• Bowie & Dick, Helix, Vacuum and Prion test programs.
• Highlights include robustness, productivity and high performance of the two-head vacuum pump and steam generation plant.

Features

• Preheating system that helps remove air from the stainless steel chamber.
• Pre-vacuum pulses around -80 kPa, in 3 phases, which eliminate over 97% of the air from the packaged loads in the pre-sterilization phase.
• Dry steam produced by a steam pump and injected into the stainless steel chamber under negative pressure, enhancing its penetration into the packaged loads and sterilization.
• Sterilization levels of 1,100 kPa at 121°C or 210/230 kPa at 134°C.
• Sterilization times vary depending on the selected program.
• PT1000 temperature sensor and electronic pressure sensor that, when synchronized, result in precision in the sterilization process, saving time and productivity.
• Pressure and heat exhaust, closed door drying by powerful two-head vacuum pump.
• Air intake through a 22µ hydrophobic filter for vacuum breaking and atmospheric pressure stabilization.
• Factory vacuum drying time for 9′. Or manually programmable between 20′ to 60′.
• Distillate quality sensors and levels in both distilled and used water tanks.
• Minimum level sensor in the distillate tank and maximum level sensor in the water used tank.
• Distilled water and used water drains that facilitate cleaning and maintenance.
• Recording the cycle phases and sterilization parameters, on a pendrive or thermal printer ribbon, streamlines management and provides transparency and security to users and patients.
• Stainless steel chamber with 10-year factory warranty. Its seamless structure makes maintenance easy.
• Wired stainless steel trays that promote steam circulation and sterilization.
• 304 AISI stainless steel door, with 2-stage lock and silicone seal for high temperatures.
• Produced in accordance with international standard EN13060:04

Specifications:

• Voltage: 220V
• Frequency: 50/60Hz
• Power: 1,800W
• Stainless steel chamber capacity: 18 and 23 liters
• Chamber dimensions: 245 x 350mm and 245 x 450mm
• External dimensions: 585 x 470 x 420mm and 695 x 470 x 420mm
• Packaging dimensions: 655 x 560 x 495mm and 765 x 560 x 495mm
• Distillate reservoir: 3 liters
• Waste reservoir: 3 liters
• Pressure range: -80kPa to 230kPa
• Sterilization temperature: 121°C and 134°C
• Sterilization time: from 3.5′ to 30′
• Drying time: 9′ standard or up to 60′ custom
• Drying: vacuum with closed door
• Water consumption per cycle: 180 ml
• Noise: <50db
• Anvisa: 8166339000
