Electric Micromotor and Contra Angle Kit 1:5 Fiber Optic Model : DIL-20C (Tealth)

This professional kit from Tealth combines a 1021-M4 external electric micromotor (DIL-20C) with a 1020L-M4 fiber optic contra-angle handpiece (I05F-01C) 1:5. Designed to deliver optimal precision and performance in dental procedures.

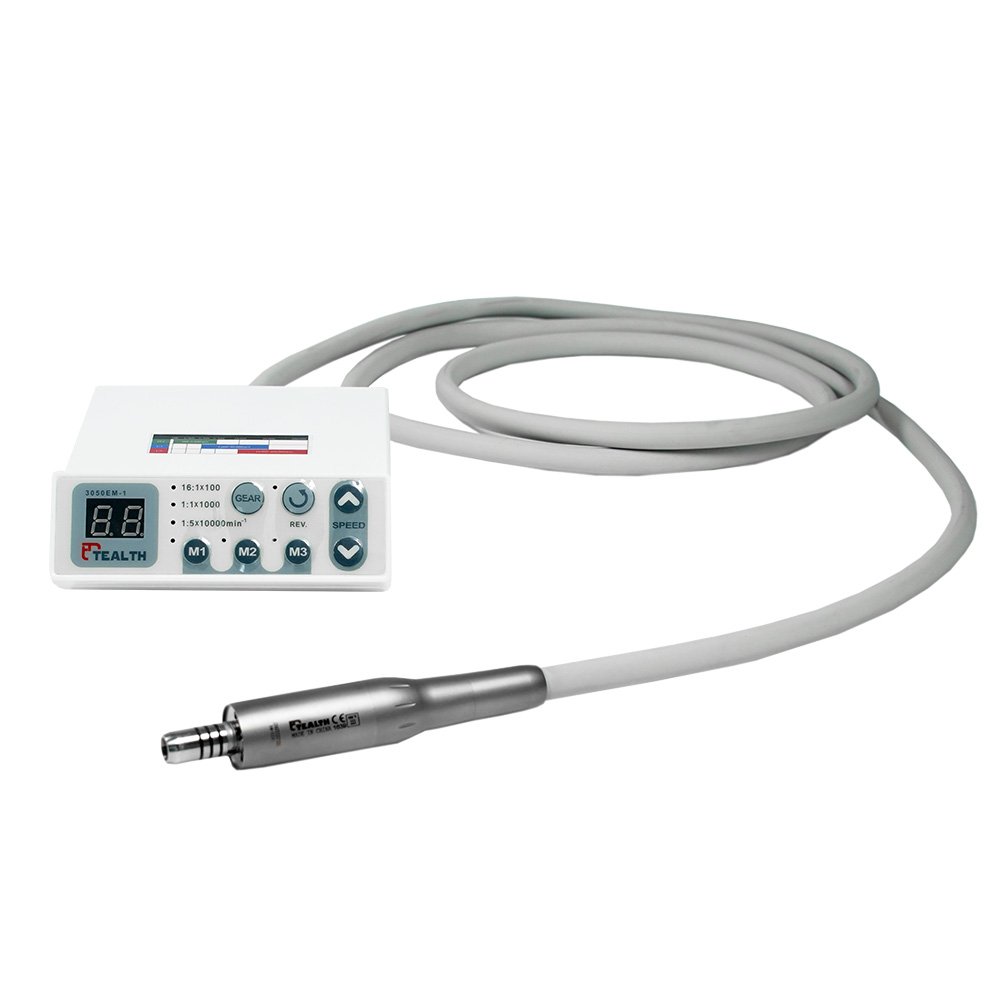

Features of the 1021-M4 (DIL-20C) micromotor:

• Direct internal irrigation system of the chair
• Borden 2-way system
• Integrated LED light
• Ultra-quiet operation
• Compatible with 1:1, 1:5, 16:1, 20:1 contra-angles
• Rotation speed:
  – 2,000 rpm to 40,000 rpm (1:1)
  – 125 rpm to 2,500 rpm (16:1)
  – 10,000 rpm to 200,000 rpm (1:5)
• 2 programmable memories
• Reverse function
• Power: 100W
• Noise level: 65dB
• Maximum torque: 3.5N/cm or 350 gf/cm

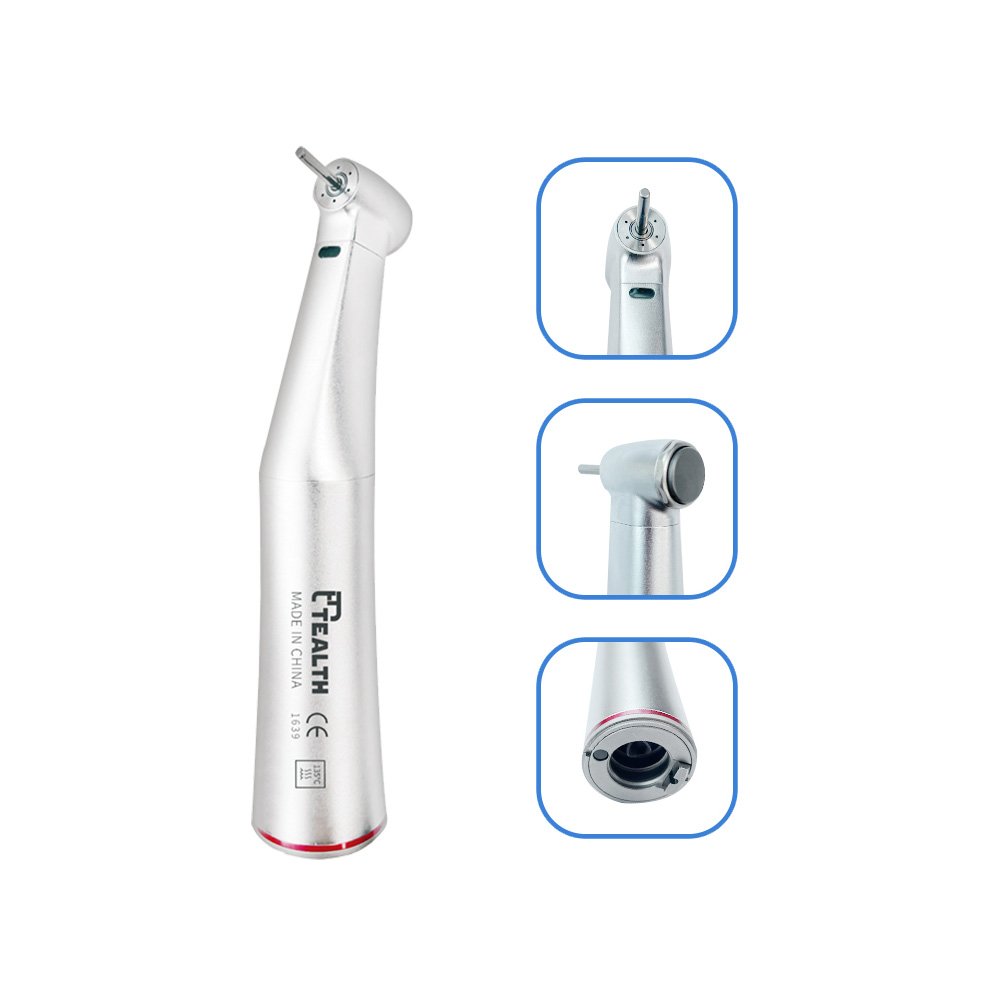

Features of the 1:5 fiber optic contra-angle 1020L-M4 (I05F-01C):

• 1:5 multiplier ratio
• Internal irrigation system
• Push button for easy cutter change
• Water sprayer with 4 sprays
• Optical fiber for light conduction of the electric micromotor
• Milling cutter diameter: φ1.6mm
• Sound level: ≤70 dB
• Rotational speed: 200,000 r/min
• Stable light source for precise illumination
• Detailed post-treatment sterilization procedure

After each treatment, sterilize the handpiece in an autoclave according to the following steps:

1. Remove the strawberry
2. Clean the exterior with an alcohol solution
3. Lubricate with spray oil
4. Place in an autoclave bag
5. Autoclave the part for 12 min. at 135°C (the LED can be sterilized)

Recommendations:

• Do not use the acid solution to scrub, inject or soak the part.
• Do not autoclave the handpiece with residual chemicals.
• The handpiece should be packed well and placed in a clean, dry room free of dust, sulfur, or salt.

TEALTH:  Quality, Innovation and Accessibility in Dental Equipment

With over 10 years of experience, Tealth has a 4,000 m² manufacturing facility specializing in high- and low-speed handpieces, as well as implant and surgical parts. Its focus is on a commitment to innovation and quality, offering products that comply with international ISO 13485:2016 standards and are CE certified.
